Product Details
- Size: 6
- Place of Origin: china
- Brand Name: hecha
- Model Number: FGL25T
- Weight: 3.680 kg

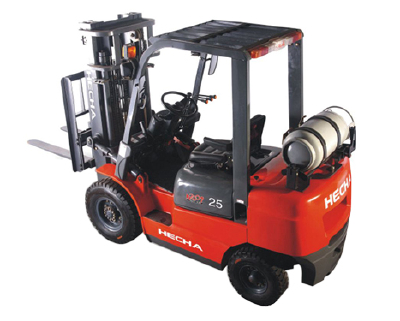

| H2007 series 2.0-3.5T Gasoline/LPG Forklift specification | |||||||||
| General | 1 | Model | FGL20T | FGL25T | |||||
| 2 | Power type | Gasoline/LPG | Gasoline/LPG | ||||||
| 3 | Rated capacity | kg | 2000 | 2500 | |||||
| 4 | Load center | mm | 500 | 500 | |||||
| 5 | Operator type | Seated | Seated | ||||||
| 6 | Tyre type | Front/Rear | Pneumatic | Pneumatic | |||||
| 7 | Number of wheels(X=driven)) | Front/Rear | 2 X /2 | 2 X /2 | |||||
| Dimensions | 8 | Lifting height | mm | 3000 | 3000 | ||||
| 9 | Free lift height | mm | 140 | 140 | |||||
| 10 | Fork size | LxWxT | mm | 920x122x40 | 1070x122x40 | ||||
| 11 | Mast tilt range | F/R | 6/12 | 6/12 | |||||
| 12 | Overall Length(Without fork) | mm | 2513 | 2583 | |||||
| 13 | Overall width | mm | 1150 | 1150 | |||||
| 14 | Mast lowered height | mm | 1995 | 1995 | |||||
| 15 | Mast extended height | mm | 4030 | 4030 | |||||
| 16 | Overhead guard height | mm | 2070 | 2070 | |||||
| 17 | Turning radius(Outside) | mm | 2170 | 2240 | |||||
| 18 | Fork overhang(Wheel center to fork face) | mm | 483 | 483 | |||||
| 19 | Min.right angle stacking aisle width (Add load length and clearance) | mm | 2640 | 2710 | |||||
| 20 | Wheelbase | mm | 1600 | 1600 | |||||
| 21 | Tread | Front | mm | 970 | 970 | ||||
| 22 | Rear | mm | 970 | 970 | |||||
| 23 | Ground clearance | Lowest | mm | 110 | 110 | ||||
| 24 | Wheel base center | mm | 115 | 115 | |||||
| Performance | 25 | Speed | Travel | Full load | km/h | 17 | 17 | ||
| 26 | No load | km/h | 19.5 | 19.5 | |||||
| 27 | Lifting | Full load | mm/s | 570 | 570 | ||||
| 28 | No load | mm/s | 600 | 600 | |||||
| 29 | Lowering | Full load | mm/s | 450 | 450 | ||||
| 30 | No load | mm/s | 550 | 550 | |||||
| 31 | Max.Drawbar Pull | Full load/No load | kg | 1250/850 | 1650/850 | 1250/850 | 1650/850 | ||
| 32 | |||||||||
| 33 | Max.Gradeability | Full load/No load | ％ | 20/20 | 21/22 | 17/18 | 18/19 | ||
| Weight | 34 | Self weight | kg | 3320 | 3680 | ||||
| 35 | Wheel distribution | Full load | Front | kg | 4730 | 5480 | |||
| 36 | Rear | kg | 590 | 700 | |||||
| 37 | No load | Front | kg | 1520 | 1465 | ||||
| 38 | Rear | kg | 1800 | 2215 | |||||
| Wheels | 39 | Tyres | Spec | Front | 7.00-12-12PR | 7.00-12-12PR | |||
| 40 | Rear | 6.00-9-10PR | 6.00-9-10PR | ||||||
| Brake | 41 | Brake type | Driving brake | Hydraulic | Hydraulic | ||||
| 42 | Parking brake | Mechanical hand brake | Mechanical hand brake | ||||||
| 43 | Battery | Voltage/Capacity | V/AH | 12/100 | 12/100 | ||||
| 44 | Transmission | Model type | Powershift (Manual) | Powershift (Manual) | |||||
| 45 | Stage | FWD/RVS | 1/1 (2/2) | 1/1 (2/2) | |||||
| 46 | Operating pressure | Mpa | 17.5 | 17.5 | |||||
| 47 | Fuel tank capacity | L | 70 | 70 | |||||
| Power & Transmission | 47 | Engine | Model | NISSANK21 | NISSANK25 | ||||
| 48 | Rated output/r.p.m | Kw | 31.5 | 37.4 | |||||
| /rpm | 2300 | 2300 | |||||||
| 49 | Rated torque/r.p.m | N.m | 144 | 171.2 | |||||
| /rpm | 1300 | 1600 | |||||||
| 50 | No.of cylinder | 4 | 4 | ||||||
| 51 | BorexStroke | mm | 89x83 | 89X100 | |||||
| 52 | Displacement | CC | 2.065 | 2.488 | |||||
