Product Details
- Size: 17M3
- Place of Origin: china
- Brand Name: hecha
- Model Number: FD60
- Weight: 8640.000 kg

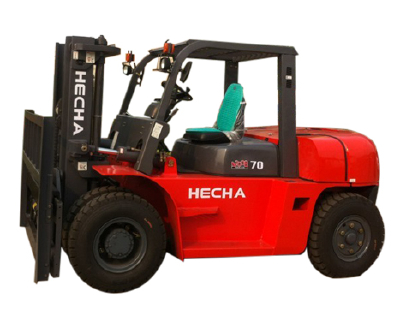

H2008 series 5.0-7.0T Diesel Forklift Specification | |||||||||||
General | 1 | Model | FD50T | FD60T | FD70T | ||||||
2 | Power type | Diesel | Diesel | Diesel | |||||||
3 | Rated capacity | kg | 5000 | 6000 | 7000 | ||||||
4 | Load center | mm | 600 | 600 | 600 | ||||||
5 | Operator type | Seated | Seated | Seated | |||||||
6 | Tyre type | Front/Rear | Pneumatic | Pneumatic | Pneumatic | ||||||
7 | Number of wheels(X=driven)) | Front/Rear | 2 X /2 | 2 X /2 | 2 X /2 | ||||||
Dimensions | 8 | Lifting height | mm | 3000 | 3000 | 3000 | |||||
9 | Free lift height | mm | 205 | 205 | 205 | ||||||
10 | Fork size | LxWxT | mm | 1220X150X55 | 1220X150X65 | 1220X150X75 | |||||
11 | Mast tilt range | F/R | 6/12 | 6/12 | 6/12 | ||||||
12 | Overall Length(Without fork) | mm | 3450 | 3530 | 3610 | ||||||
13 | Overall width | mm | 1995 | 1995 | 1195 | ||||||
14 | Mast lowered height | mm | 2500 | 2500 | 2625 | ||||||
15 | Mast extended height | mm | 4420 | 4420 | 4420 | ||||||
16 | Overhead guard height | mm | 2450 | 2450 | 2450 | ||||||
17 | Turning radius(Outside) | mm | 3250 | 3300 | 3360 | ||||||
18 | Fork overhang(Wheel center to fork face) | mm | 590 | 590 | 595 | ||||||
19 | Min.right angle stacking aisle width (Add load length and clearance) | mm | 2960 | 3000 | 3040 | ||||||
20 | Wheelbase | mm | 2250 | 2250 | 2250 | ||||||
21 | Tread | Front | mm | 1470 | 1470 | 1470 | |||||
22 | Rear | mm | 1700 | 1700 | 1700 | ||||||
23 | Ground clearance | mm | 190 | 190 | 190 | ||||||
Performance | 24 | Speed | Travel | km/h | 0-10 | 0-30 | 0-10 | 0-30 | 0-10 | 0-30 | |
25 | Max.Drawbar Pull | Full load/No load | N | 53410 | 53410 | 52430 | |||||
26 | |||||||||||
27 | Max.Gradeability | Full load/No load | % | 32 | 28 | 24 | |||||
Weight | 28 | Self weight | kg | 7980 | 8640 | 9350 | |||||
Wheels | 29 | Tyres | Spec | Front | 4-8.25-15-14PR | 4-8.25-15-14PR | 4-8.25-15-14PR | ||||
30 | Rear | 2-8.25-15-14PR | 2-8.25-15-14PR | 2-8.25-15-14PR | |||||||
Brake | 31 | Brake type | Driving brake | Hydraulic | Hydraulic | Hydraulic | |||||
32 | Parking brake | Mechanical hand brake | Mechanical hand brake | Mechanical hand brake | |||||||
33 | Battery | Voltage/Capacity | V/AH | 12/100 | 12/100 | 12/100 | |||||
34 | Transmission | Model type | Powershift (Manual) | Powershift (Manual) | Powershift (Manual) | ||||||
35 | Stage | FWD/RVS | 2/2 | 2/2 | 2/2 | ||||||
36 | Operating pressure | Mpa | 17 | 17 | 17 | ||||||
37 | Fuel tank capacity | L | 70 | 70 | 70 |
Power & Transmission | 38 | Engine | Model | CHAOCHAI 6102G3 | ISUZU 6BG1 | ||||
39 | Rated output/r.p.m | Kw | 64 | 82 | |||||
/rpm | 2200 | 2000 | |||||||
40 | Rated torque/r.p.m | N.m | 290 | 415 | |||||
/rpm | 1650 | 1400-1600 | |||||||
41 | No.of cylinder | 6 | 6 | ||||||
43 | Displacement | L | 5.785 | 6.494 |
