Product Details
- Size: 5.5
- Place of Origin: china
- Brand Name: hecha
- Model Number: FB20-FAZ1
- Weight: 4160.000 kg

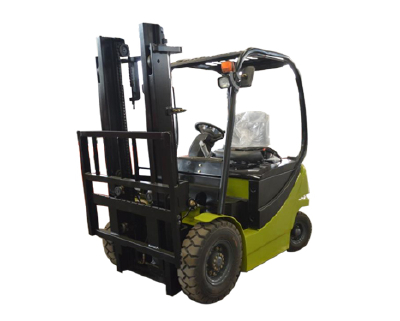

2.0T-2.5T Electric Forklift Specification | ||||||
Specification | 1 | Model | FB20-FAZ1 | FB25-FAZ1 | ||
2 | Rated capacity | kg | 2000 | 2500 | ||
3 | Load centre | mm | 500 | 500 | ||
4 | Lifting height | mm | 3000 | 3000 | ||
5 | Free lifting height | mm | 130 | 130 | ||
6 | Fork size | L×W×T | mm | 1070×125×40 | 1070×125×40 | |
7 | Tilting angle | F/R(α°/β°) | Deg | 6/12 | 6/12 | |
Dimensions | 8 | Overall Dimension | Length (to fork face) | mm | 2345 | 2375 |
9 | Width | mm | 1150 | 1150 | ||
10 | Height when mast lowered | mm | 2045 | 2045 | ||
11 | Height when mast lifting | mm | 4190 | 4190 | ||
12 | Height to safeguard | mm | 2125 | 2125 | ||
13 | Turning radius | Min. | mm | 2225 | 2225 | |
14 | Overhang | mm | 438 | 438 | ||
15/16 | Thread(Front/Rear) | mm | 970/950 | 970/950 | ||
17 | Ground clearance | Min. | mm | 108 | 108 | |
18 | Wheelbase | mm | 1550 | 1550 | ||
19 | Fork spread | Min./Max. | mm | 250/1000 | 250/1000 | |
20 | Working aisle width with pallet (Ast)* | 1000×1200 crossways | mm | 3925 | 3925 | |
21 | 800×1200 lengthways | mm | 4025 | 4025 | ||
Performance | 22 | Speed | Travel (Laden) | km/h | 12 | 13 |
23 | Travel (Unladed) | km/h | 13 | 14 | ||
24 | Lifting (Laden) | mm/s | 300 | 300 | ||
25 | Lifting (Unladed) | mm/s | 420 | 420 | ||
26 | Gradeability | Laden | % | 12 | 12 | |
27 | Unladed | % | 13 | 13 | ||
28 | Service weight | Include battery box | kg | 4160 | 4360 | |
29 | Tyre | FrontX2 | 7.00-12-12PR | 7.00-12-12PR | ||
30 | RearX2 | 18×7-8-14PR | 18×7-8-14PR | |||
Driven | 31 | Motor | Driven motor | kw | 11 | 11 |
32 | Pump motor | kw | 11 | 11 | ||
33 | Battery | Standard | V/Ah | 48/600 | 48/600 | |
34 | Optional | V/Ah | 48/620 | 48/620 | ||
35 | Controller | Type | MOSFET | MOSFET | ||
36 | Manufacturer | ZAPI | ZAPI | |||
37 | Operating pressure for attachment | Mpa | 17.5 | 17.5 |
